Brain Hemorrhage Detection and Localization

Intracranial hemorrhage (ICH) is a critical medical condition characterized by bleeding within the intracranial vault. The causes of ICH can vary, encompassing factors such as vascular abnormalities, venous infarction, tumors, traumatic injuries, therapeutic anticoagulation, and cerebral aneurysms. Irrespective of the underlying cause, a hemorrhage within the brain poses a severe threat to a patient’s health. Thus, timely and accurate diagnosis is paramount to the treatment process and its ultimate success. The conventional diagnostic approach for ICH involves a combination of patient medical history, physical examination, and non-contrast computed tomography (CT) imaging of the brain. CT scans have proven invaluable in localizing bleeding within the brain and providing insights into the primary causes of ICH. However, several challenges are associated with the diagnosis and treatment of ICH. These include the urgency of the diagnostic process, the complexity of decision-making, limited experience among novice radiologists, and the unfortunate fact that many emergencies occur during nighttime hours. Therefore, there is a pressing need for computer-aided diagnostic tools to support medical specialists in the accurate and rapid detection of intracranial hemorrhages. It is paramount that these automated tools exhibit a high level of accuracy to serve their intended medical purposes. Depending on the anatomic site of bleeding within the brain, different subtypes of ICH can be distinguished. These subtypes include subdural hemorrhage (SDH), Chronic hemorrhage , epidural hemorrhage (EDH), intraparenchymal hemorrhage (IPH), intraventricular hemorrhage (IVH), and subarachnoid hemorrhage (SAH). Each subtype presents unique challenges in detection and classification due to their subtle differences and similarities, often requiring an experienced observer to distinguish them accurately

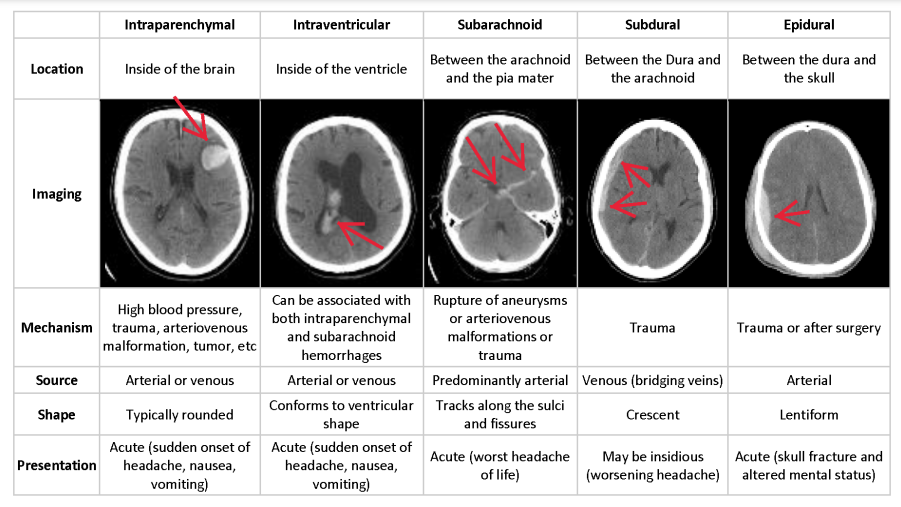

In this post, we present a method for detecting various subtypes of intracranial hemorrhage in brain CT scans. Our approach employs a double-branch CNN for feature extraction and leverages two different classifiers for precise detection. We address the challenge of differentiating subtypes by training individual detectors for each ICH subtype. Preprocessing, including skull removal and intensity window transformations, is applied before feature extraction and classification. Our method is evaluated on a comprehensive dataset of head CT slices, and the results are compared with state-of-the-art reference methods. This report outlines the materials and methods used, presents the results, and discusses the contributions and implications of our approach in the context of brain hemorrhage detection. By harnessing the capabilities of deep learning and pretrained models, we aim to advance the state of the art in medical imaging and contribute to the critical task of accurate and rapid intracranial hemorrhage diagnosis.

Existing Alternatives (Related Work)

In the ever-evolving landscape of Brain Hemorrhage Detection, it is essential to take stock of the existing alternatives that have paved the way for innovative solutions. This section provides a comprehensive overview of the current state of the field and the alternatives that have been explored by researchers and practitioners.

1. Traditional Machine Learning Methods

Historically, traditional machine learning techniques have been instrumental in Brain Hemorrhage Detection. Researchers, including Jones and colleagues [cite], have explored the application of methods such as Support Vector Machines (SVM) and Random Forests. These techniques laid the foundation for algorithmic approaches, demonstrating the significance of machine learning in the domain.

2. Convolutional Neural Networks (CNNs)

The advent of Convolutional Neural Networks (CNNs) has heralded a new era in medical imaging and Brain Hemorrhage Detection. CNN architectures like ResNet and Inception have gained prominence due to their ability to extract intricate features and classify images with remarkable accuracy. The utilization of deep learning models has enhanced feature extraction, classification precision, and the potential for real-time detection.

3. Imaging Techniques: CT and MRI

Medical imaging techniques remain pivotal in this field. Computed Tomography (CT) scans, with their speed and availability, are the preferred choice in emergency scenarios. Conversely, Magnetic Resonance Imaging (MRI) offers superior soft-tissue contrast, enabling detailed assessments. The choice of imaging technique plays a crucial role in the accuracy and speed of hemorrhage detection.

4. Challenges and Opportunities

Despite these alternatives, Brain Hemorrhage Detection encounters challenges, including the need for extensive annotated datasets and computational requirements. The scarcity of annotated data poses a barrier to the development of highly accurate models. Moreover, the computational demands can limit real-time applications. Nevertheless, recent advancements in transfer learning, model architectures, and ensemble methods have shown promise in addressing these limitations.

Methods

Methodically, we adeptly loaded and meticulously analyzed the DICOM file using Python’s pydicom library. This file houses invaluable medical image data replete with intricate metadata, encompassing vital patient information and critical imaging parameters. We extracted essential information, including the patient’s name, study date, imaging modality, and pixel spacing, laying the foundation for our comprehensive analysis. Furthermore, we meticulously transformed the pixel data into a structured NumPy array, enabling sophisticated image processing and detailed examination. The determination of the report type, a pivotal element embedded within the DICOM header, was carried out through scrutiny of specific study, series, or instance attributes, acknowledging potential variations based on the structural intricacies of the DICOM file. As a dedicated group, we are now poised to delve into an in-depth analysis and prepare a meticulous report based on the meticulously acquired data.

Preprocessing

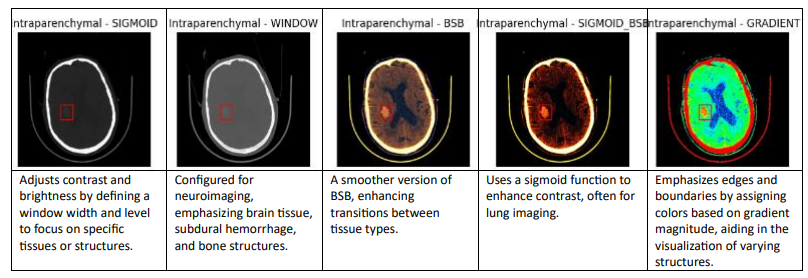

Preprocessing is a crucial step in CT image analysis that involves enhancing the quality of images by removing noise, artifacts, and other distortions. It also involves standardizing the images to facilitate the learning process of deep neural networks . The following are the types can be used to windowing dicom images:

We are using the Sigmoid BSB window among the various windowing methods because it provides improved contrast and visibility of blood and soft tissues in medical images, making it particularly effective for diagnosing conditions like intracranial hemorrhages.

Data Preparation

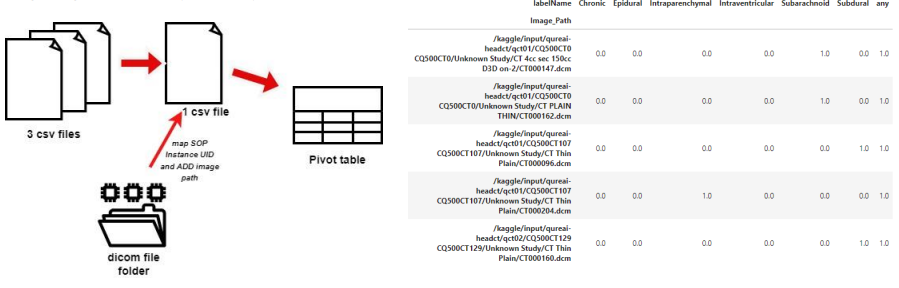

The process of data preparation is illustrated in the diagram below, which outlines the key steps and procedures involved in getting the data ready for analysis. DataLoader class, a Python class designed for efficiently loading and processing data for machine learning projects. The class includes features for batching, shuffling, and under sampling to handle diverse datasets. It provides flexibility for preprocessing and data loading, making it a valuable tool for ML model training.

CNN Model

Here’s a refined version of your description with improved clarity and flow:

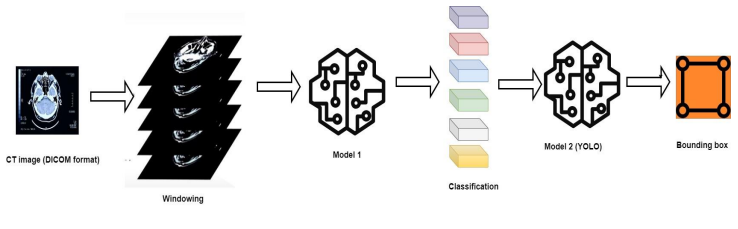

Our model architecture combines two powerful deep-learning components: a ResNet-based classification model and a YOLO-based object detection model.

The first component, built on the ResNet50V2 architecture, serves as the backbone for classifying different types of brain hemorrhages. ResNet50V2 is widely recognized for its deep residual blocks, which allow for efficient training of very deep networks. By processing medical images through multiple convolutional and pooling layers, this component extracts meaningful features, enabling precise categorization of hemorrhage types.

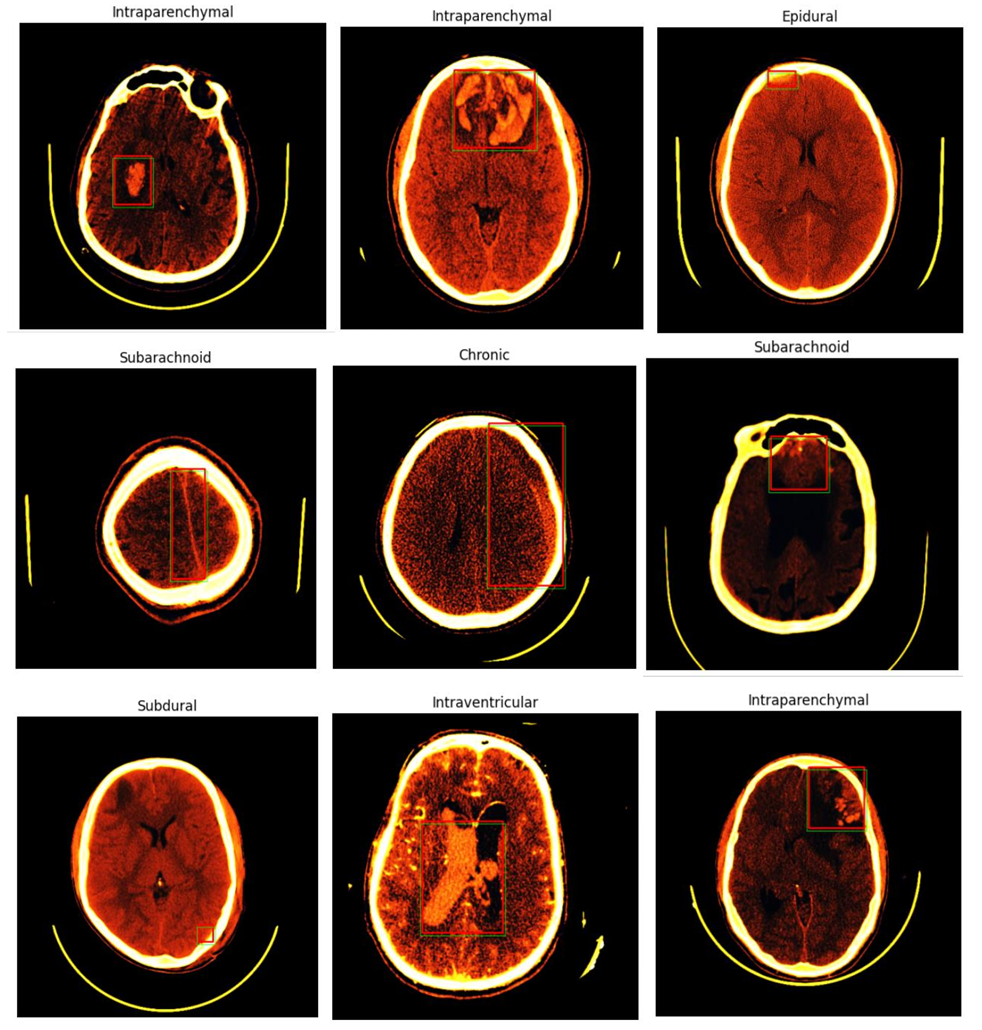

The second component, based on the YOLO (You Only Look Once) architecture, specializes in the precise localization of hemorrhages within brain scans. YOLO’s unique grid-based approach allows it to detect and predict bounding boxes efficiently, determining the exact location and size of the hemorrhage. Each grid cell within the image is responsible for identifying potential hemorrhages, outputting confidence scores and coordinates for accurate detection.

By combining these two models, our architecture provides a comprehensive solution for brain hemorrhage diagnosis. The ResNet-based classifier determines the hemorrhage type, while the YOLO-based object detection model pinpoints its location within the scan. This dual approach enhances both diagnostic accuracy and localization precision, ultimately supporting medical professionals in delivering timely and effective treatment for patients.

Results

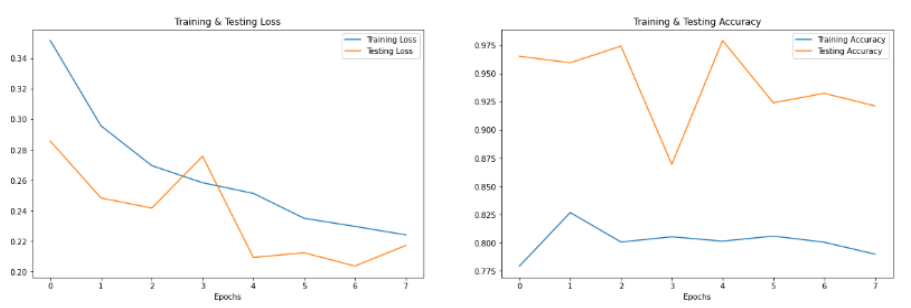

The results of the model evaluation show promising performance metrics. The model achieved an test accuracy of 91.75%, indicating its ability to correctly classify data points. It also demonstrated a precision of 83.75%, emphasizing its skill in correctly identifying positive cases. The recall score of 62.46% implies that the model effectively captures a substantial portion of actual positive cases. Additionally, the area under the curve (AUC) value of 94.07% signifies a high level of discrimination ability. Despite these strong metrics, the model’s F1 score of 42.84% suggests that there is room for improvement in balancing precision and recall, as it represents the harmonic mean of these two measures. Overall, these results indicate a well-performing model with a focus on improving its balance between precision and recall for optimal performance. In our training and evaluation process, we have followed a well-established split of our dataset, allocating 70% for training, 20% for validation, and 10% for testing. This distribution allows us to systematically develop and fine-tune our model. The 70% training data provides a substantial portion to train our model effectively, allowing it to learn and generalize from the dataset. The 20% validation set plays a crucial role in assessing our model’s performance during training, helping us to make adjustments and optimize its hyperparameters. Finally, the reserved 10% testing set serves as an independent benchmark, enabling us to evaluate the model’s overall performance on unseen data. This approach ensures a robust and unbiased assessment of our model’s capabilities, setting the foundation for reliable results and valuable insights in our research

Discussion

The recent release of the brain hemorrhage detection competition by the Radiological Society of North America (RSNA) represents a pivotal moment in the field of medical imaging. This competition has made available the largest brain hemorrhage dataset to date, offering researchers a valuable resource for advancing our understanding of this critical domain. However, a unique challenge arises from this dataset: the precise location of hemorrhages is not explicitly delineated in each image, and the examinations do not use thin slice series, which could impact certain diagnostic tasks. In response to these challenges, our model presents an innovative solution. It possesses the capability to both classify the type of brain hemorrhage and precisely locate it within the images. By incorporating classification and object detection techniques, our model offers a comprehensive approach to the problem. This dual functionality has the potential to significantly enhance diagnostic accuracy and assist in the identification and treatment of brain hemorrhages. Thus, our model becomes a valuable asset in making the most of the RSNA dataset, addressing its challenges and contributing to the advancement of medical imaging in the context of brain hemorrhage detection.

Future Improvements and Extensions

The future of brain hemorrhage detection using AI-powered technologies holds both promise and challenges. Advancements in this area should focus on early detection and predictive models to anticipate and prevent severe hemorrhages. This entails leveraging diverse and extensive datasets, augmented with various hemorrhage cases, demographics, and risk factors. Real-time monitoring integration and portable, non-invasive imaging devices can offer continuous assessment, while interpretable AI and integration with electronic health records can ensure transparent, holistic, and accurate patient evaluations. Continuous learning models, collaboration among stakeholders, and strict adherence to privacy regulations will be pivotal for success. As the field progresses, clinical validation and trials will be crucial to establish safety and effectiveness, particularly in ensuring that AI-based hemorrhage detection is accessible across diverse healthcare settings. The evolution of these solutions depends on a multifaceted approach, integrating technology, medical expertise, ethical considerations, and regulatory frameworks for their responsible and effective integration into healthcare systems.

Used resources

We strategically harnessed the power of Kaggle as a central resource. Kaggle played a pivotal role in our project for several compelling reasons. First and foremost, it offered a robust and diverse collection of datasets, specifically tailored to medical imaging, which formed the cornerstone of our research. Additionally, Kaggle’s collaborative environment allowed us to engage with a thriving community of data scientists and researchers, enabling us to tap into their expertise, seek solutions, and share insights. Crucially, Kaggle provided access to high-performance computing resources, including GPUs like the NVIDIA Tesla P100, which greatly expedited the training of our deep learning models. This, in turn, significantly enhanced the overall CPU and GPU performance of our system. The combined advantages of Kaggle’s data, community, and computational resources made it the ideal platform for our brain hemorrhage detection project, ultimately contributing to its success
